翻了一下之前的日报,发现还没有人教如何手写OJ。那么捡漏走起
概述
首先,这篇文章介绍如何一步步手写OJ。
也许你会问“为什么我们不直接配置HustOJ/UOJ呢?”
下面我们了解一下配置现成OJ的缺点:
- 安装配置复杂(大多数需要安装mysql,而mysql对armhf平台有兼容性问题QAQ)
- 系统占用高 (树莓派和小型vps很难带动,更别提执行效率了)
- 不易上手(要自己查文档)
如果不想看开发过程的,可以直接看Day14!
前置知识
创建调试平台
本项目在Codeanywhere上进行编写、调试。
Codeanywhere,一个在线PHP执行平台,速度快,功能强大。
在codeanywhere注册一个账号,新建一个Project。
关于Codeanywhere的使用不再赘述,身为开发者多年的你一定会认为这个IDE简单有趣。
另外,后期我主要使用Codenvy,因为我把CodeAnywhere的账号密码忘掉了。
编写过程 && 代码解析
一下部分有完善的注释,直接阅读注释即可。
$\color{red}{\text{Day4及以后的项目每次运行前要先执行/setperm.sh 或 admin/setperm.sh修复权限,切记!}}$
$\color{red}{\text{Day4及以后的项目每次运行前要先执行/setperm.sh 或 admin/setperm.sh修复权限,切记!}}$
$\color{red}{\text{Day4及以后的项目每次运行前要先执行/setperm.sh 或 admin/setperm.sh修复权限,切记!}}$
Day1:简单IDE
Day1全部代码下载
我们从评测部分写起。Day1的任务是实现一个简单的ide,类似洛谷IDE。
实现原理
大概就是这样。
观察实现原理图,我们发现需要创建一下的文件:
- submit.html : submit.php的前端显示页面
- submit.php : 用于创建judge.cpp和data.in并在评测后返回结果
- judge.sh : 编译judge.cpp并进行测试,输出data.out
首先创建一个文件夹:judge,新建一个脚本:judge.sh,在新弹出的编辑器里写入
# judge.sh 类似对拍程序。
rm judge # 保险起见,删除上次的可执行文件。
g++ judge.cpp -O2 -o judge # 编译
./judge < data.in > data.out # 运行
记得chmod 755 judge.sh
然后是submit.php。先看submit.php的伪代码:
删除上次评测时的临时文件
写入judge.cpp和data.in
调用judge.sh编译
将data.out输出至网页
下面上代码。
<?php
$code = $ _POST["code"];// 获取 代码
$input = $ _POST["input"];//获取 输入
unlink ("judge"); //删除 judge,以下类推
unlink ("data.in");
unlink ("data.out");
unlink ("judge.cpp");
$file = fopen("judge.cpp","w+") or exit("Unable to Open CPP."); //将 代码 写入 judge.cpp
fwrite($ file, $code);
fclose($ file);
$fin = fopen("data.in","w+") or exit("Unable to Open Input"); //将 输入 写入 data.in
fwrite($ fin, $input);
fclose($ fin);
system("./judge.sh");//执行 judge.sh
$fout = fopen("data.out","r") or exit("Unable to Open File."); // 输出 data.out
while (!feof($ fout)){
echo fgets( $fout);
}
fclose($ fout);
?>
然后submit.html就极其简单易懂了。
<html>
<head>
<title>Submit Your Code</title>
</head>
<body>
<form action="submit.php" method="post">
<textarea name="code" height="200px" width="80px"></textarea>
<br>
<textarea name="input" height="100px" width="40px"></textarea>
<input type="submit">
</form>
</body>
</html>
Day2:简单OJ
Day2全部代码下载
一个OJ只有IDE是不行的,还需要测试数据和题面展示。 测试数据的摆放方式是这样的:
首先我们要修改/judge/submit.php
,让它支持多组数据的评测。
<?php
function judge( $code,$ path){
//echo $path;
unlink ("judge");
unlink ("data.in");
unlink ("data.out");
unlink ("judge.cpp");
$ file = fopen("judge.cpp","w+") or exit("Unable to Open CPP.");
fwrite( $file,$ code);
fclose( $file);
if (!is_file($ path)) exit("Bad Problem ID!");
copy( $path,"./data.in");
system("./judge.sh");
$ fout = fopen("data.out","r") or exit("Unable to Open File.");
$ret = "";
while (!feof($ fout)){
$ret = $ ret . fgets( $fout);
//echo $ ret;
}
fclose( $fout);
return $ ret;
}
$code = $ _POST["code"]; //代码
$pid = $ _POST["pid"]; // ProblemID
$curj = 1;//初始化当前数据点编号
$ p_fnt = "../problems/" . $pid . "/"; //生成数据目录相对路径
while (is_file($ p_fnt . "data" . (string)( $curj) . ".in")){//枚举数据点编号
//echo $ p_fnt . "data" . (string)( $curj) . ".in";
judge($ code, $p_fnt . "data" . (string)($ curj) . ".in");//评测当前测试点
$file1 = md5_file("./data.out"); // 计算提交代码的输出的MD5
$ file2 = md5_file( $p_fnt . "data" . (string)($ curj) . ".out");//计算数据文件中输出的MD5
if ( $file1 == $ file2) //比对
echo "AC<br>";
else
echo "WA<br>";
$curj = $ curj + 1; //下一个测试点
}
?>
然后修改judge/submit.html
(略,详见代码包)
收集任意一题的数据包(此处以A+B Problem
为例),解压至problem/1001
。
在problem/1001
中新建题面文件cover.html
,写入
<title>A+B Problem</title>
<h1>A+B Problem</h1>
<p>
Please Caculate A+B.
<br>
Input:a,b:Integer
<br>
Output:a+b
</p>
写完了...不,没有。还有show.php
呢。
show.php的访问格式为show.php?pid=[你要访问的ProblemID]
下面上代码:
<?php
$probid = $ _GET["pid"]; //ProblemID
$cover = "./problems/" . $ probid . "/cover.html"; //题面相对目录
if (!is_file( $cover)) exit("Bad Problem ID!");//确认题面存在
$ file = fopen( $cover,"r") or exit("Bad Cover!");
echo "<h3>Problem id:" . (string)$ probid . "</h3>";//输出PID
while (!feof( $file)){
echo fgets($ file);//逐行输出题面
}
fclose( $file);
echo "<a href=\"judge/submit.html\">Submit</a>"; //submit链接
?>
```
------------
到Day2为止,一个基本的OJ就建成了。它拥有**题面展示**、**评测**功能。
------------
### Day3:小优化 && TLE的判别
Day3[**全部代码下载**](https://gitee.com/freeoj/FreeOnlineJudge/raw/master/FreeOJ_0.0.3_New3.zip)
首先优化了一下结果显示页,添上了测试点编号和颜色,详见代码包。
一个网站没有`index.php`怎么行呢?
我们简单的写一下`index.php`,让它可以显示所有题目。
```
<?php
// /index.php
exec("ls ./problems",$ prbs); // 获取所有文件
$cur = [];
foreach ($ prbs as $cur)
echo "<a href=\"show.php?pid=" . $ cur . "\">" . $cur . "</a>"; //逐个输出
?>
```
按理说这样这一节就写完了,然后我意识到,这样的话就没法判别TLE了。无法判别TLE会使试图卡暴力的毒瘤出题人不开心,所以我们要加入TLE的判别。
如何实现TLE的判别呢?我们选择使用linux的命令“timeout”
`Usage:timeout time command [return_val]`
好了,在了解语法后,我们创建一个`/judge/judge.php`,然后删除`/judge/judge.sh`,因为它已经光荣退役了。
下面上`/judge/judge.php`的代码:
```
<?php
function Do_judge($ time_limit){ //进行评测
unlink ("judge");
unlink ("data.out");
system("g++ judge.cpp -O2 -o judge"); //编译
//echo "timeout " . (string)( $time_limit) . " ./judge < data.in > data.out";
$ return_var = 0;
system("timeout " . (string)( $time_limit) . " ./judge < data.in > data.out",$ return_var); //测试
if ( $return_var == 124) return false; else return true;
}
?>
```
然后修改`/judge/submit.php`
```
<?php
require ("judge.php"); //这里!
function judge($ code, $path,$ t_l){
(略)
return Do_judge( $t_l); //这里! true:没TLE false:TLE
//$ fout = fopen("data.out","r") or exit("Unable to Open File.");
// $ret = "";
//while (!feof($ fout)){
// $ret = $ ret . fgets( $fout);
//echo $ ret;
//}
//fclose( $fout);
//return $ ret;
}
(略)
while (is_file( $p_fnt . "data" . (string)($ curj) . ".in")){
//echo $p_fnt . "data" . (string)($ curj) . ".in";
echo "<h3>Test Case #" . (string)( $curj) . ":</h3>";
if (!judge($ code, $p_fnt . "data" . (string)($ curj) . ".in",1/*时限一秒*/))//这里!
echo "<h3 style=\"background-color:#4169E1\">TLE</h3>";
else{
(略)
}
(略)
}
?>
Day4:题目的属性attribute.json
&& CE的判定
Day4全部代码下载
AC...WA...TLE(RE)...还差CE。如何判定CE呢?看看编译后有没有输出文件即可。
核心代码如下。
(略)
if (!file_exists("judge")){ ///没有输出judge
return -1;
}
(略)
我们修改一下submit.php
中显示答案的部分,让它兼容现有的judge.php
。
<?php
(略)
function judge( $code,$ path, $t_l){
(略)
}
(略)
while (is_file($ p_fnt . "data" . (string)( $curj) . ".in")){
echo "<h3>Test Case #" . (string)($ curj) . ":</h3>";
$j_stat = judge($ code, $p_fnt . "data" . (string)($ curj) . ".in",(int)(get_prb_time_limit( $pid)));
if ($ j_stat == 0){
echo "<h3 style=\"background-color:#4169E1\">TLE</h3>";
}elseif ( $j_stat == -1){
echo "<h3 style=\"background-color:#FF4500\">CE</h3>";
}elseif ($ j_stat == 1){
(略)
}
(略)
}
?>
测试一下...可以判别CE了。
我们的代码里写着这样一行:
if (!judge( $code,$ p_fnt . "data" . (string)( $curj) . ".in",1/*时限一秒*/))`
可是,每题的时限怎么可能都是一秒呢?我们要想办法解决这个问题。
PHP有自带的保存数据的方式`json`,它简单有趣,可以通过`json_encode`函数解析成数组。
我们在`/library/prbinfo.php`中写入
```
<?php
//be called like 'require ("./library/prbinfo.php");'
function get_prb_info($ pid){ //获取题目信息 $file = fopen("../problems/" . (string)($ pid) . "/attrib.json","r"); $attr = fgets($ file); return json_decode( $attr,true);
}
function get_prb_name($ pid){//获取题目名称 $pinfo = get_prb_info($ pid); return $pinfo["name"];
}
function get_prb_time_limit($ pid){//获取题目时限 $pinfo = get_prb_info($ pid); return $pinfo["time_limit"];
}
?>
```
然后把那一行改成`$ j_stat = judge( $code,$ p_fnt . "data" . (string)( $curj) . ".in",(int)(get_prb_time_limit($ pid)));
别的文件也要进行适配修改,此处不再赘述。
我们还加入了setperm.sh
和unperm.sh
便于修复权限。此处不再赘述。
至此,我们已经凑齐了四种编译状态。
Day5:评测队列 && 小优化
Day5全部代码下载
想象一下两个用户在你的OJ同时提交了代码,突然...
为什么呢?新来的judge.cpp
把旧的覆盖了!
所以我们要实现评测队列。评测队列就相当于操作系统中的多任务,把每个评测都放到独立的容器中评测,互不干扰。
正常评测队列原理如下。
开一个Docker
把代码放进去跑
关闭该Docker
实现评测队列,其实就是把原来的judge.php
,submit.php
,submit.html
三个核心评测文件单独复制到一个特殊的文件夹内进行评测。文件夹较docker轻量化,占用资源更少。其实只是docker咕了
我们把judge
文件夹重命名为judge-module
,作为评测机的模板。
将submit.php
中的评测函数搬到judge.php
中。
submit.php
<?php
require ("./judge.php"); //链接judge.php
$code = $ _POST["code"];//代码
$pid = $ _POST["pid"];//problem id
unlink("./submit.html");//删除submit.html
Result( $code,$ pid);//评测
unlink("./submit.php");//删除submit.php
header('location:' . dirname( $_SERVER["PHP_SELF"]) . "/result.html");//跳转至result.html
?>
```
是不是精简多了?但是`judge.php`又变长了QAQ...
`judge.php`
```cpp
<?php
require ("../../library/prbinfo.php"); //获取时限
function Do_judge($ time_limit){
(略)
}
function judge( $code,$ path, $t_l){
(略)
}
function Result($ code, $pid){
$ fsub=fopen("result.html","w+") or exit("(略)"); //将网页输出至result.html
(略)
while (is_file( $p_fnt . "data" . (string)($ curj) . ".in")){
fwrite( $fsub,"<h3>Test Case #" . (string)($ curj) . ":</h3>");
(略)
if ( $j_stat == 0){
fwrite($ fsub,"<h3 style=\"background-color:#4169E1\">TLE</h3>");
}elseif ( $j_stat == -1){
fwrite($ fsub,"<h3 style=\"background-color:#FF4500\">CE</h3>");
}elseif ( $j_stat == 1){
(略)
if ($ file1 == $file2)
fwrite($ fsub,"<h3 style=\"background-color:#00FF00\">AC</h3>");
else
fwrite( $fsub,"<h3 style=\"background-color:#FF4500\">WA</h3>");
}
$ curj = $curj + 1;
}
fclose($ fsub);
unlink ("judge"); //删除judge
unlink ("data.in"); //删除data.in
unlink ("data.out"); //删除data.out
unlink ("judge.php"); //删除judge.php
}
在/library
目录下创建filesys.php
作为文件系统库:
<?php
function copydir( $source, $ dest) //复制目录
{
if (!file_exists( $dest)) mkdir($ dest);
$handle = opendir($ source);
while (( $item = readdir($ handle)) !== false) {
if ( $item == '.' || $ item == '..') continue;
$_source = $ source . '/' . $item;
$ _dest = $dest . '/' . $ item;
if (is_file( $_source)) copy($ _source, $_dest);
if (is_dir($ _source)) copydir( $_source, $ _dest);
}
closedir( $handle);
}
function rmdirs($ path) //删除目录
{
$handle = opendir($ path);
while (( $item = readdir($ handle)) !== false) {
if ( $item == '.' || $ item == '..') continue;
$_path = $ path . '/' . $item;
if (is_file($ _path)) unlink( $_path);
if (is_dir($ _path)) rmdirs( $_path);
}
closedir($ handle);
return rmdir( $path);
}
?>
```
在根目录下创建`submit.php`。
```cpp
<?php
require ("./library/filesys.php"); //链接库
$ j_path = "submissions/judge" . md5(uniqid(microtime(true),true)); //新容器的目录
copydir("./judge-module", $j_path);把容器模型复制一份过去
header('location:' . $ j_path . "/submit.html");跳转至新容器下的submit.html
这样,我们的容器部分就完成了。容器使用过后,只留下结果result.html
和源代码,可以当评测机录用。
最后,我们进行一些整理。我们将setperm.sh
和unperm.sh
移至/admin
下。至于里面的dashboard.html/.php
,这是两个彻底的失败。在之后的版本会被删除的。
至此,我们已经有多个用户同时评测的能力了。
Day6:简单优化
Day6全部代码下载
Day6最适合咕咕咕了!
删除一些注释,给界面画画表格然后收工!
Day7:用户支持
Day7全部代码下载
没有用户支持的话,这个OJ还只能算一个半成品。我们在第一周就要给它加上用户支持,这样就可以用剩下的时间来优化它了。
我们把用户的数据存到user/database/{uid}.json
,举个例子:
{"name":"gugu","passwd":"123456","record":"[\"1001\"]","intr":"abc"}
不难看出,用户数据是由以下部分构成的json
:
名称 | 意义 |
---|---|
name | 用户名 |
passwd | 密码 |
record | 提交记录 |
intr | 个性签名 |
在PHP中处理json
很简单,就像在Day4说的那样。
我们创建library/libuser.php
<?php
define('WWWROOT',str_replace('\\','/',realpath(dirname(__FILE__).'/'))."/");
function get_user_info( $uid){ //获取用户信息,返回信息数组
//echo BASE_PATH . "problems/" . (string)($ pid) . "/attrib.json";
$file = fopen(WWWROOT . "../user/database/" . (string)($ uid) . ".json","r");
$attr = fgets($ file);
fclose( $file);
return json_decode($ attr,true);
}
function set_user_info( $uid,$ pinfo){ //写入用户信息,写入信息数组
//echo BASE_PATH . "problems/" . (string)( $pid) . "/attrib.json";
$ file = fopen(WWWROOT . "../user/database/" . (string)( $uid) . ".json","w+");
fwrite($ file,json_encode( $pinfo));
fclose($ file);
}
function get_user_name( $uid){ //获取用户名称
$ pinfo = get_user_info( $uid);
//echo $ pinfo["name"];
return $pinfo["name"];
}
function get_user_passwd($ uid){ //获取用户密码
$pinfo = get_user_info($ uid);
return $pinfo["passwd"];
}
function get_user_intr($ uid){ //获取用户签名
$pinfo = get_user_info($ uid);
return $pinfo["intr"];
}
function get_user_record($ uid){ //获取用户记录
$pinfo = get_user_info($ uid);
return json_decode( $pinfo["record"],true);
}
function set_user_name($ uid, $name){ //写入用户名称
$ pinfo = get_user_info( $uid);
$ pinfo["name"] = $name;
set_user_info($ uid, $pinfo);
}
function set_user_passwd($ uid, $passwd){ //写入用户密码
$ pinfo = get_user_info( $uid);
$ pinfo["passwd"] = $passwd;
set_user_info($ uid, $pinfo);
}
function set_user_intr($ uid, $intr){ //写入用户签名
$ pinfo = get_user_info( $uid);
$ pinfo["intr"] = $intr;
set_user_info($ uid, $pinfo);
}
function set_user_record($ uid, $record){ //写入用户记录
$ pinfo = get_user_info( $uid);
$ arr = json_decode( $pinfo["record"],true);
array_push($ arr, $record);
$ arr = array_unique( $arr);
$ pinfo["record"] = json_encode( $arr);
set_user_info($ uid, $pinfo);
}
function auth_user($ uid, $passwd){ //验证用户信息是否正确
if ($ uid == 0) return false;
if (get_user_passwd( $uid) == $ passwd)
return true;
else
return false;
}
function create_user( $name,$ passwd){ //创建用户
$cuid = 1; //当前用户id
while (file_exists(WWWROOT . "../user/database/" . (string)($ cuid) . ".json"))
$cuid = $ cuid + 1;
$file = fopen(WWWROOT . "../user/database/" . (string)($ cuid) . ".json","w+");
$pinfo = array("name"=>$ name,"passwd"=> $passwd,"record"=>"{}","intr"=>"This user is very lazy so that he didn't ...");
fwrite($ file,json_encode( $pinfo));
fclose($ file);
return $cuid;
}
function cookie_uid(){ //从cookie读取用户id
if (!isset($ _COOKIE["uid"])) return -1;
else return $_COOKIE["uid"];
}
function cookie_passwd(){ //从cookie读取密码
if (!isset($ _COOKIE["uid"])) return -1;
else return $_COOKIE["passwd"];
}
function auth_cookie(){ //验证cookie中的用户信息
//echo cookie_uid() . ' ' . cookie_passwd();
return auth_user(cookie_uid(),cookie_passwd());
//echo $ blk;
}
user/show.php
:使用user/show.php?uid={uid}
调用时,显示该id用户信息,否则显示当前用户信息。
<?php
require ("../library/libuser.php");
echo "<html><head><title>User Infomation</title></head>";
if (isset( $_GET["uid"])){ //有uid参数
$ uid = $_GET["uid"];
echo "<h3>Hello,". get_user_name($ uid) ."</h3>";
echo "<h3>Introduction:</h3><p>";
echo get_user_intr( $uid);
echo "<br><h3>Submitting Record</h3>";
foreach (get_user_record($ uid) as $cur){
echo $ cur . " ";
}
}else if (auth_cookie()){ //已登录
echo "<h3>Hello,". get_user_name(cookie_uid()) ."</h3>";
echo "<h3>Introduction:</h3><p>";
echo get_user_intr(cookie_uid());
echo "<br><h3>Submitting Record</h3>";
foreach (get_user_record(cookie_uid()) as $cur){
echo $ cur . " ";
}
}else{
header('location:' . "login.html"); //跳转至登陆界面
}
还要添加login.php/html
,register.php/html
,修改submit.html
,请自行阅读代码。
至此,oj已基本支持用户,但是还有一些小问题。比如...
额。。。Day8再修吧。
Day8:用户密码加密 && 评测状态查询
Day8全部代码下载
首先我们解决Day7留下的Bug。在不改动apache配置的情况下,我们没有办法阻止查看{uid}.json
,但是如果将密码加密,就算密文被看到也无法得出密码了。
PHP自带加密函数crypt()
,我们采用crypt( $passwd,$ passwd)
进行加密。
直接将libuser.php
中所有的 &ndsp;passwd
全部改为 crypt( $passwd,$ passwd)
即可。篇幅有限,请直接看代码。
POJ有个著名的功能,叫做“Online Status”。作为一个现代化的OJ,我们也要实现这个功能。
思路:
在评测时创建一个辅助文件,它可能是"Unused","unaccepted","accepted"
若该文件是”unused“,表明未进行评测或评测错误。
若该文件是”unaccepted“,表明评测未通过。
若该文件是”accepted“,表明评测通过。
在status.php被调用时,扫描/submissions下的每一个评测记录,根据以上法则判断评测结果输出。
下面上status.php
代码。
<?php
echo "<body><table class=\"table\"><caption>Status</caption>";
echo "<thead><tr><th>Run ID</th><th>Status</th><th>Detail</th></tr></thead><tbody>";
exec("ls -tr ./submissions", $stl);
//"<tr class=\"warning\"><td>All</td><td>CE</td></tr>"
foreach ($ stl as $cur){
//echo $ cur . "<br>";
if (file_exists("./submissions/" . $cur . "/unused"))
echo "<tr class=\"warning\"><td>" . $ cur . "</td><td>Submitting/Judgement Failed</td>" . "<td><a href=\"submissions/" . $cur . "/result.html\">More</a></td></tr>";
elseif (file_exists("./submissions/" . $ cur . "/accepted"))
echo "<tr class=\"success\"><td>" . $cur . "</td><td>Accepted</td>" . "<td><a href=\"submissions/" . $ cur . "/result.html\">More</a></td></tr>";
elseif (file_exists("./submissions/" . $cur . "/unaccepted"))
echo "<tr class=\"danger\"><td>" . $ cur . "</td><td>Unaccepted</td>" . "<td><a href=\"submissions/" . $cur . "/result.html\">More</a></td></tr>";
else
echo "<tr class=\"active\"><td>" . $ cur . "</td><td>Judging</td>" . "<td>Detail(unavailable)</td></tr>";
}
echo "</tbody></table></body></html>";
其他文件还需要修改,篇幅原因省略。
到Day8为止,一个OJ的核心就完成了。仅仅14.87KB
的代码,甚至比Win7自带的计算器(758KB
)还要小!在完成核心之后,我们只需进行一些优化即可。
附:FreeOJ核心下载:这里
Day9:UI美化 && 用户信息修改
Day9全部代码下载
哇!Bootstrap真TM漂亮!这导航栏...这列表...
推荐一个很好的Bootstrap设计器:这里
咳咳,我们在每个网页前面都加上导航栏,然后进行一些UI美化。美化的过程极其枯燥,直接看代码包吧。
结果展示:
这个签名真鸡肋啊。。。又不能改的说。。。对了,我们增加一个用户信息修改页面吧。
user/dashboard.php
<?php
require ("../library/libuser.php");
if (!auth_cookie()/*没有登陆*/) header("location:/user/login.html");
$uid = cookie_uid();//cookie中的UID
if (isset($ _POST["nname"])){//修改用户名
//Modify Username
set_user_name( $uid,$ _POST["nname"]);
}
if (isset( $_POST["npasswd"])){//修改密码
//Modify Passwd
set_user_passwd($ uid, $_POST["npasswd"]);
}
if (isset($ _POST["nintr"])){//修改简介
//Modify Introduction
set_user_intr( $uid,$ _POST["nintr"]);
}
还要添加user/dashboard.html
和导航栏,篇幅有限略去。
这样,我们就可以通过user/dashboard.html
或导航栏修改用户信息了!
Day10:管理员Admin && 评测器修整 && OJ参数 && 更强的加密算法
Day10全部代码下载
用户这么多,不管理怎么行呢?我们需要管理员!欸...当管理员很烦?你不见那位姓陈的管理员......真TM爽!
总之,我们要设计一个用户管理界面user/admin.php
,让它充当管理面板吧。
首先,我们要在用户参数中添加priv
一项,表示该用户是否为管理员("user":普通用户,"admin":管理员)。这里priv
就是privilege
的意思啦。
我们修改user/libuser.php
,如果读过前面章节的话,一定知道怎么改吧。
(略)
然后我们添加user/admin.php
,作为管理页面。
<?php
require ("../library/libuser.php");
require ("../library/libui.php");
function gen_opr_link( $uid){ //产生操作链接
return '<a href="admin.php?action=delete&uid='.(string)($ uid) . '">Delete this User</a><br>' .
'<a href="admin.php?action=cpriv&uid='.(string)( $uid) . '">Admin/DeAdmin</a>';
}
function disp_adm($ uid){ //显示管理员标记
if (auth_admin( $uid))
return "(admin)";
else
return "";
}
echo html_head("Administration");
echo html_navbar();
if (auth_cookie() && auth_admin(cookie_uid())) //已登录且为管理员
$ aduid = cookie_uid();
else{
echo '<div class="alert alert-danger">You are not an administrator!</div>';
exit("");
}
if (!isset( $_GET["action"])){ //无动作,显示管理页面
echo '<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="panel-group" id="panel-207182">';
$ cu = 0;
exec("ls ./database", $arr);
foreach ($ arr as $cur){
$ cu = (int)(strtok( $cur,"."));
echo ' <div class="panel panel-default">
<div class="panel-heading">
<a class="panel-title collapsed" data-toggle="collapse" data-parent="#panel-207182" href="#panel-element-' . $ cu . '">User #' . $cu . ':' . get_user_name($ cu) . disp_adm( $cu) . '</a>
</div>
<div id="panel-element-' . $ cu . '" class="panel-collapse collapse">
<div class="panel-body">' .
gen_opr_link( $cu).
'</div>
</div>
</div>';
$ cu = $cu + 1;
}
echo "</div></div></div></div>";
echo "</body></html>";
}else{
if ($ _GET["action"] == "delete"){ //删除操作
system('rm database/' . $_GET["uid"] . '.json');
}
elseif ($ _GET["action"] == "cpriv"){//提权/降权操作
if (get_user_priv((int)( $_GET["uid"])) == "user")
set_user_priv((int)($ _GET["uid"]),"admin");
else
set_user_priv((int)( $_GET["uid"]),"user");
}
header("location:admin.php");
}
```

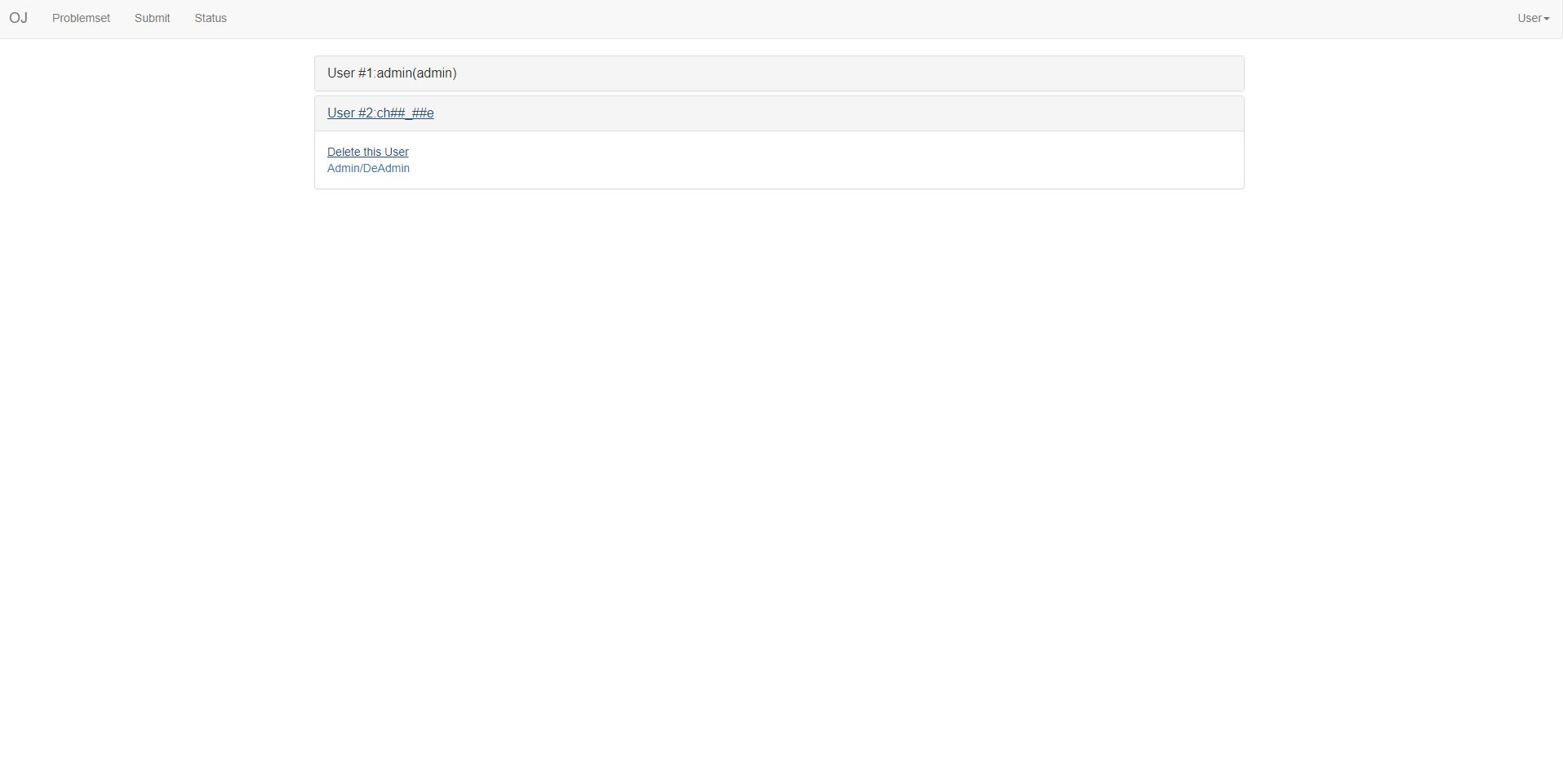

效果图:

看看`submissions/`目录下,这简直乱成一锅粥了嘛...RunID这么长怎么可能记住啊......我们进行一些简单的移植:
```
将judge.php移入submit.php
将judge.php移入根目录下
删除 judge_module
同时,将记录放入record目录下,这样评测完可以直接删除评测目录。
```
代码变动略。
同时,为了避免大量注册用户攻击,我们需要在必要的时候关闭注册。我们创建一个库`liboj.php`,将OJ有关的信息写入`ojcfg.json`。
```cpp
<?php
define('OJROOT',str_replace('\\','/',realpath(dirname(__FILE__).'/'))."/");
function get_oj_info(){
$ file = fopen(OJROOT . "../ojcfg.json","r");
$attr = fgets($ file);
fclose( $file);
return json_decode($ attr,true);
}
function get_oj_regstat(){//获取oj注册状态
$pinfo = get_oj_info();
//exit($ pinfo["enable_register"]);
return $pinfo["enable_register"] == "true";
}
```
然后在`user/register.php`中写入
```
if (!get_oj_regstat()) exit("Register Disabled!");
elseif (!isset($ _POST["name"]) || !isset( $_POST["passwd"])) exit("Invalid Username/Password!");
```
只要在`ojcfg.json`中写入`{"enable_register":"false"}`就可以关闭注册,这样oj就不会被炸掉啦!

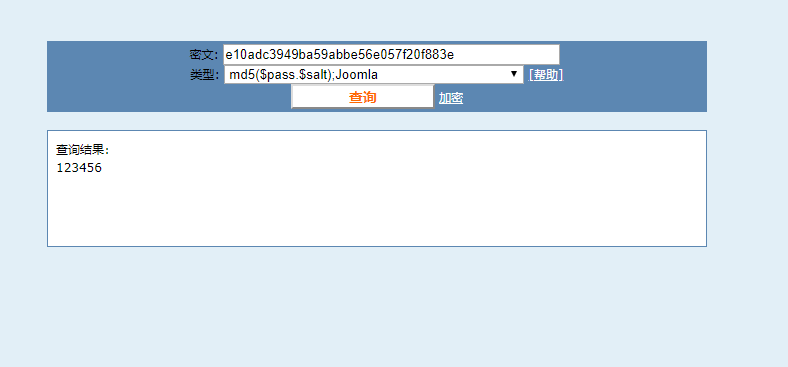

呃...其实Day8的加密一点也不加密。我们应该在`library/libuser.php`中单独写一个加密函数。
像这样
```cpp
function pass_enc($ pass){
$eps = $ pass;
$times = 10;$ i=1;
while ( $i <= $ times){
$i = $ i+1;
$eps = crypt($ eps, $eps);
}
return $ eps;
}
为了确保加密性,请将这个函数修改为自己的风格。 只要这个函数不泄露,就算天王老子也猜不出来密码了。
Day11:完善管理界面 && 创建UI库
Day11全部代码下载
完善一下管理界面,加上修改OJ名的功能。
就算只改一个功能,也要改变全部的Navbar,真讨厌啊...
我们创建一个UI库,像这样。
<?php
define('UIR',str_replace('\\','/',realpath(dirname(__FILE__).'/'))."/");
require_once(UIR . "/liboj.php");
require_once(UIR . "/libuser.php");
function pick_navright(){//判断用户名
if (auth_cookie())
return get_user_name(cookie_uid());
else
return "User";
}
function html_head( $title){//输出HTML头
return '<html><head>
<meta charset="utf-8">
<title>' . $ title . '</title>
<link rel="stylesheet" href="https://cdn.staticfile.org/twitter-bootstrap/3.3.7/css/bootstrap.min.css">
<script src="https://cdn.staticfile.org/jquery/2.1.1/jquery.min.js"></script>
<script src="https://cdn.staticfile.org/twitter-bootstrap/3.3.7/js/bootstrap.min.js"></script>
</head><body>';
}
function html_navbar(){//输出导航栏
return '<nav class="navbar navbar-default" role="navigation">
<div class="container-fluid">
<div class="navbar-header">
<a class="navbar-brand" href="/index.html">' . get_oj_name() . '</a>
</div>
<div>
<ul class="nav navbar-nav">
<li><a href="/problemset.php">Problemset</a></li>
<li><a href="/submit.php">Submit</a></li>
<li><a href="/status.php">Status</a></li>
</ul>
</div>
<ul class="nav navbar-nav navbar-right">
<li class="dropdown">
<a href="#" class="dropdown-toggle" data-toggle="dropdown">' . pick_navright() . '<strong class="caret"></strong></a>
<ul class="dropdown-menu">
<li>
<a href="/user/dashboard.html">Dashboard</a>
</li>
<li>
<a href="/user/login.html">Login</a>
</li>
<li>
<a href="/user/register.html">Register</a>
</li>
<li class="divider">
</li>
<li>
<a href="/user/login.php?logout=true">Logout</a>
</li>
</ul>
</li>
</ul>
</div>
</nav>';
}
function html_tail(){ //输出HTML尾部
return '</body></html>';
}
然后,每个PHP文件前面影响美观的一大段输出就可以改为
echo html_head("Your Title");
echo html_navbar();
最后再加上
echo html_tail();
就可以轻松写出规范的HTML了!
Day12:博客系统 && 全PHP化 && 犇犇
Day12全部代码下载
还有什么缺少的呢?emm...
博客!好像所有OJ都支持博客。而且支持了博客,我们只需稍加改进就可以支持题解和犇犇了。
我们把博客信息用json存储。json的优势和操作方法之前讲过了。
标识 | 意义 |
---|---|
uid | 作者 |
time | 最近修改时间 |
title | 标题 |
content | 内容 |
然后在library
目录下创建博客库library/liblog.php
内容大致是这样的:
<?php
define('BLROOT',str_replace('\\','/',realpath(dirname(__FILE__).'/'))."/"); // root地址
require_once(BLROOT . "/libuser.php");
function blog_exists( $bid){//判断博客是否存在
return file_exists(BLROOT . "../blog/content/" . $ bid . ".json");
}
function find_idle_bid(){//寻找空id号
$bid = 1;
while (file_exists(BLROOT . "../blog/content/" . $ bid . ".json"))
$bid = $ bid + 1;
return $bid;
}
function delete_blog($ bid){//删除博客
system("rm " . BLROOT . "../blog/content/" . $bid . ".json");
}
function alloc_blog($ bid){//分配空博客
if (blog_exists( $bid)) return;
$ file = fopen(BLROOT . "../blog/content/" . $bid . ".json","w+");
fwrite($ file,'{"uid":"' . cookie_uid() . '","time":"' . date("Y-m-d H:i:s") . '","title":"QAQ","content":"Enter your content here..."}');
fclose( $file);
return $ bid;
}
function get_blog_info( $bid){//获取博客信息
if (!blog_exists($ bid)) return;
$file = fopen(BLROOT . "../blog/content/" . $ bid . ".json","r");
$attr = fgets($ file);
fclose( $file);
return json_decode($ attr,true);
}
function set_blog_info( $bid,$ arr){//写入博客信息
$file = fopen(BLROOT . "../blog/content/" . $ bid . ".json","w+");
fwrite( $file,json_encode($ arr));
fclose( $file);
}
function get_blog_uid($ bid){//获取博客作者,以下类似
$pinfo = get_blog_info($ bid);
return $pinfo["uid"];
}
function get_blog_title($ bid){
$pinfo = get_blog_info($ bid);
return $pinfo["title"];
}
function get_blog_time($ bid){
$pinfo = get_blog_info($ bid);
return $pinfo["time"];
}
function get_blog_content($ bid){
$pinfo = get_blog_info($ bid);
return $pinfo["content"];
}
function set_blog_uid($ bid, $uid){//写入博客作者,以下类似
$ pinfo = get_blog_info( $bid);
$ pinfo["uid"] = $uid;
set_blog_info($ bid, $pinfo);
}
function set_blog_title($ bid, $title){
$ pinfo = get_blog_info( $bid);
$ pinfo["title"] = $title;
set_blog_info($ bid, $pinfo);
}
function set_blog_time($ bid, $time){
$ pinfo = get_blog_info( $bid);
$ pinfo["time"] = $time;
set_blog_info($ bid, $pinfo);
}
function set_blog_content($ bid, $cont){
$ pinfo = get_blog_info( $bid);
$ pinfo["content"] = $cont;
set_blog_info($ bid, $pinfo);
}
function get_wiki_info(){
$ file = fopen(BLROOT . "../blog/wiki.json","r");
$attr = fgets($ file);
fclose( $file);
return json_decode($ attr,true);
}
function set_wiki_info( $arr){
$ file = fopen(BLROOT . "../blog/wiki.json","w+");
fwrite( $file,json_encode($ arr));
fclose( $file);
}
function get_prb_wiki($ pid){
$pinfo = get_wiki_info();
return json_decode($ pinfo[ $pid]);
}
function set_prb_wiki($ pid, $bid){
$ pinfo = get_wiki_info();
$arr = json_decode($ pinfo[ $pid]);
if ($ arr === NULL) $arr=array();
array_push($ arr, $bid);
$ arr = array_unique( $arr);
$ pinfo[ $pid] = json_encode($ arr);
set_wiki_info( $pinfo);
}
function blog_frame($ bid){//输出博客框架
echo '<div class="panel panel-default">
<div class="panel-body">
'. get_blog_content( $bid) . '
</div>
<div class="panel-footer">' . username_colored(get_blog_uid($ bid)) . ',' . get_blog_time( $bid) . '</div>
</div>';
}
```
创建`blog/content`存储博客,`blog/show.php`和`blog/edit.php`负责操作。
```
//blog/show.php
<?php
require_once("../library/liblog.php");
require_once("../library/libui.php");
if (isset($ _GET["bid"])){//展示特定文章
$bid = $ _GET["bid"];
echo html_head("Reading Blog - " . get_blog_title( $bid));
echo html_navbar();
echo blog_frame($ bid);
}else{//展示列表,类似status.php
echo html_head("All Blogs");
echo html_navbar();
echo '<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="panel-group" id="panel-890604">';
exec("ls -t ./content", $arr);
foreach ($ arr as $cur){
$ cu = strtok( $cur,".");
echo '<div class="panel panel-default">
<div class="panel-heading">
<a class="panel-title collapsed" data-toggle="collapse" data-parent="#panel-890604" href="#panel-element-' . $ cu . '">Blog #' . $cu . ':' . get_blog_title($ cu) . '</a>
</div>
<div id="panel-element-' . $cu . '" class="panel-collapse collapse">
<div class="panel-body">
<a href="edit.php?bid=' . $ cu . '">Original Link</a>' .
get_blog_content( $cu) . '
</div>
</div>
</div>';
}
}
echo html_tail();
```
我们希望加入题解功能,其实特别简单,只要写入`wiki.json`就行了。
```
//edit.php
<?php
require_once ("../library/liblog.php");
require_once ("../library/libui.php");
require_once ("../library/libuser.php");
echo html_head("Edit your blog!");
if (!auth_cookie()){
header("location:/user/login.html");//未登录
}else
$ uid = cookie_uid();
if (isset( $_POST["bid"])){//修改特定bid
$ bid = $_POST["bid"];
$ title = $_POST["title"];
$ content = $_POST["content"];
if (blog_exists($ bid) && get_blog_uid( $bid) != cookie_uid()){
//echo (string)(get_blog_uid($ bid)) . '&&' . (string)(cookie_uid());
echo '<div class="alert alert-danger">Permission Denied.</div>';
exit("");
}
alloc_blog( $bid);
set_blog_time($ bid,date("Y-m-d H:i:s"));
set_blog_title( $bid,$ title);
set_blog_content( $bid,$ content);
header("location:show.php?bid=" . $bid);
}elseif (isset($ _GET["bid"])){
if (isset( $_GET["pid"])){//跳转至特定bid修改页
//exit($ _GET["pid"] . "****** " . $_GET["bid"]);
set_prb_wiki($ _GET["pid"], $_GET["bid"]);
header("location:edit.php");
}if ($ _GET["bid"] == "NEW"){//新建博客
$bid = find_idle_bid();
}elseif (isset($ _GET["delete"])){//删除博客
delete_blog( $_GET["bid"]);
header("location:edit.php");
}else{
$ bid = $_GET["bid"];
}
echo html_navbar();
echo '<div class="container" >
<div class="row clearfix">
<div class="col-md-12 column">
<form role="form" action="edit.php" method="post">
<div class="form-group">
<label for="bid">Blog ID</label>
<input type="text" class="form-control" name="bid" value = "' . $ bid . '">
</div>
<div class="form-group">
<label for="title">Title</label>
<input type="text" class="form-control" name="title" value = "' . htmlentities(get_blog_title( $bid)) . '">
</div>
<div class="form-group">
<label for="content">Content(In HTML):</label>
<textarea class="form-control" rows="15" name="content">'. htmlentities(get_blog_content($ bid)) .'</textarea>
</div>
<button type="submit" class="btn btn-default">Publish</button>
</form>
</div>
</div>
</div>';
}else{//显示“我的博客”
echo html_navbar();
echo '<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<a class="btn btn-block btn-primary btn-lg" href="edit.php?bid=NEW" role="button">New Blog</a>
<div class="panel-group" id="panel-260817">';
exec("ls -tr content/", $arr);
foreach ($ arr as $cur){
$ cu = strtok( $cur,".");
if (get_blog_uid($ cu) == cookie_uid()){
echo ' <div class="panel panel-default">
<div class="panel-heading">
<a class="panel-title collapsed" data-toggle="collapse" data-parent="#panel-260817" href="#panel-element-' . $cu . '">Blog #' . $ cu . ':' . get_blog_title( $cu) . '</a>
</div>
<div id="panel-element-' . $ cu . '" class="panel-collapse collapse">
<div class="panel-body">
<script>
function Subwiki(){
document.location="edit.php?bid=' . $cu . '&pid=" + document.getElementById("pid").value;//跳转至提交题解页面
}
</script>
<a href="show.php?bid=' . $ cu .'">Preview</a><br />
<a href="edit.php?bid=' . $cu .'">Edit</a><br />
ProblemID:<input id="pid" />
<button type="button" class="btn btn-primary" onclick="Subwiki()">Submit to Wiki</button><br / >
<a href="edit.php?bid=' . $ cu .'&delete=true">Delete</a><br />
</div>
</div>
</div>';
}
}
}
洛谷近期取消了全网犇犇,这让我很不开心。我希望在这个OJ里有全网犇犇。犇犇的本质不就是一个叫benben.json
的博客吗?我们可以对博客系统稍加改进来支持这个功能。
有了犇犇就可以玩有趣的诗句接龙了呢~
首先我们在library/liblog.php
中添加以下函数:
function benben_frame( $sentence){//输出犇犇框架
//if (!auth_cookie()) return;
return '<div class="panel panel-default">
<div class="panel-body">
'. $ sentence . '
</div>
<div class="panel-footer">' . username_colored(cookie_uid()) . ',' . date("Y-m-d H:i:s") . '</div>
</div>';
}
function launch_benben( $sentence){//发射犇犇!
if (!auth_cookie()) return;
$ rst = get_blog_content("benben") . benben_frame(htmlentities( $sentence));
//exit($ rst);
set_blog_content("benben", $rst);
}
function clear_benben(){//清空犇犇
set_blog_content("benben", benben_frame(htmlentities("Welcome to BenBen!")));
```
然后,我们对`index.php`稍加修改即可,具体请见代码。
我们注意到,`html`中的`navbar`无法随着`libui.php`的更新而改变,这是我们十分苦恼。
我决定将所有html都php化。
php大概是这样的
```
if (isset($ _GET[某个参数])){
进行动作
}else{
显示网页
}
对所有html进行修改...好了!
Day13:提交记录、题面JSON化 && 题目上传
Day13全部代码下载
由于需要在两周内写完这个项目,Day13将会是开发的最后一天。 提交记录不json化的话好不美观呀!不如把它JSON话呢。如果看过前面章节的话,一定知道怎么改吧。
最后是题面上传,有注释,请自行阅读代码。
/upload.php
<?php
require_once("library/libui.php");
if (isset( $_POST["pid"])){ //有数据
$ pkg_url = $_POST["pkg_url"];
$ pid = $_POST["pid"];
$ name = $_POST["name"];
$ time_limit = $_POST{"time_limit"};
$ cover = $_POST["cover"];
$ pr_dir = "problems/" . $pid;
mkdir($ pr_dir);
mkdir( $pr_dir . "/data");//建文件夹
$ attr = fopen( $pr_dir . "/attrib.json","w+");
fwrite($ attr,"{\"name\":\"" . $name . "\",\"time_limit\":" . $ time_limit . ",\"cover\":\"" . $cover . "\"}");
fclose($ attr);//写入attrib.json
system ("wget " . $pkg_url . " -O temp/" . $ pid . ".zip");//下载数据
system ("unzip temp/" . $pid . ".zip -d " . $ pr_dir . "/data");//解压数据
header("location:show.php?pid=" . $pid);
}else{
echo html_head("Upload a problem.");
if (!auth_cookie() || !auth_admin(cookie_uid())) exit("You aren't an admin!");//不是管理员
else{
echo html_navbar();
echo '<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<h3>Upload your problem</h3>
<form role="form" action="upload.php" method="post">
<div class="form-group">
<label for="pkg_url">Data Package Url(ZIP format)</label>
<input type="text" class="form-control" name="pkg_url" />
</div>
<div class="form-group">
<label for="pid">Problem ID</label>
<input type="text" class="form-control" name="pid" />
</div>
<div class="form-group">
<label for="name">Problem Name</label>
<input type="text" class="form-control" name="name" />
</div>
<div class="form-group">
<label for="time_limit">Time Limit</label>
<input type="text" class="form-control" name="time_limit" />
</div>
<div class="form-group">
<label for="cover">Problem Cover</label>
<textarea class="form-control" name="cover" rows="15"></textarea>
</div>
<button type="submit" class="btn btn-primary">Upload</button>
</form>
</div>
</div>
</div>';
echo html_tail();
}
}
```
这样,访问`/upload.php`就可以导入题目了。
### Day14:在Orange PI上配置FreeOJ
如果不在实体机上配置FreeOJ的话,就是纸上谈兵。所以要花一天的时间配置FreeOJ。
如果家里有树莓派或者香橙派的化就直接照做就行了,如果没有的可以到淘宝上买一个,不贵。或者如果有Ubuntu-x86的电脑的话也可以。下面的安装步骤是OrangePi PC2上的,其他平台类似。

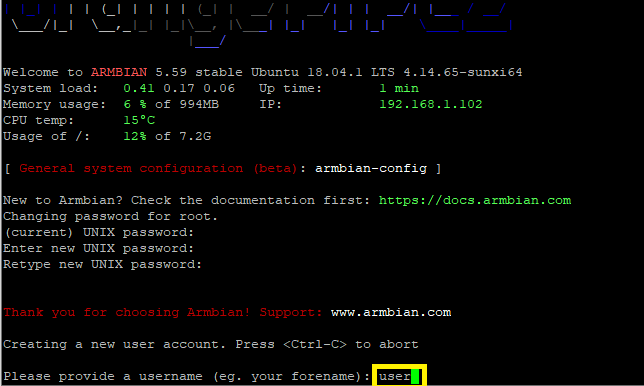

首先刷上`Armbian`的包,然后通过SSH连接OrangePi,初始密码`1234`。然后会让你创建新用户,记得填`user`.

剩下的信息随便填即可。
填完之后输入以下命令:
```
sudo apt-get update
sudo apt-get upgrade
sudo apt-get install php apache2
```
然后就可以浏览器访问你的OrangePI的IP地址检查服务器搭建是否成功。
```
cd /var/www/html
wget https://github.com/team-alloca/FreeOnlineJudge-src/raw/master/FreeOJ_1.0.0Final.zip
unzip FreeOJ_1.0.0Final.zip
rm FreeOJ_1.0.0Final.zip
cd scripts
chmod 755 *
./setperm.sh
rm ../index.html
```
好了,访问你的IP,就可以使用FreeOJ了。
对了,初始用户名是`admin`,uid是`1`,密码是`123456`。
如果发现编译时间过长,可以自行调整`library/libjudge,php`里的编译时限
```
exec("timeout 7 g++ " . $ j_path . "/judge.cpp -std=c++11 -O2 -o " . $j_path . "/judge",$ cot);//将7改为更大一点的数字
后记
2周,仅仅2周的文章,但是花了我将近2个月。虽然只有只言片语,但是很多东西都是写了又改,改了又写。我不善文笔,让各位见笑了。
这个OJ,它很初级,工作量甚至不到UOJ的十分之一,但它确实是一个OJ,它的代码实现也很简单,在座的各位肯定能看懂。
如果有BUG的话,请私信我修改。如果有时间的话,我会尽量修复。
当然,这个OJ远没有完成,但由于学业上的原因,我不得不把这个项目搁置一下了。 大家也可以拿着这个OJ继续开发,说不定哪天能变成Luogu这样的大牌OJ呢!(笑)
最后,祝大家学习生活愉快!
VariousArtist,2019-03-17
